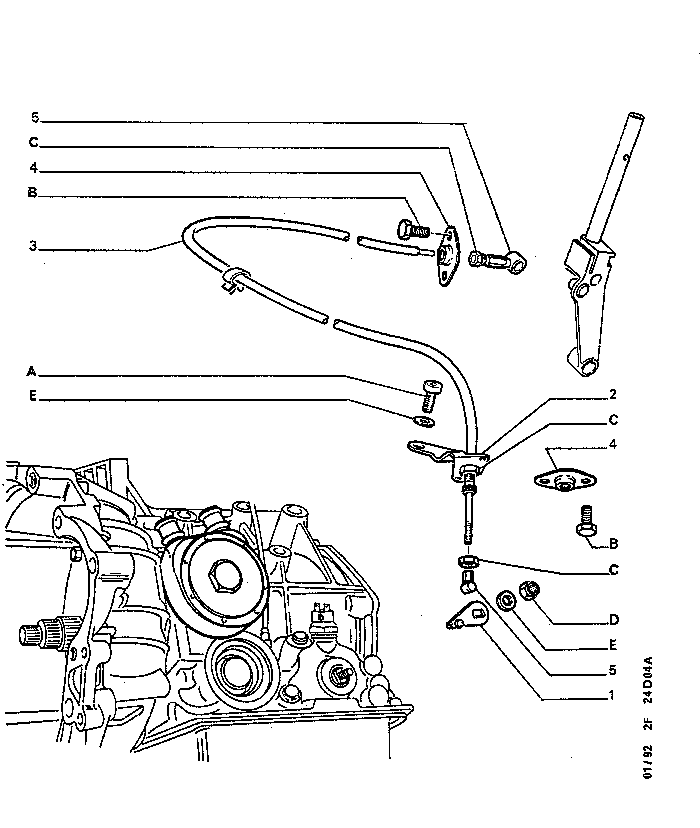

| GB | 205F 2 24D04A | AUTOMATIC GEARBOX CONTROL LEVER |
|
A) LOWER THE HEAT SHIELD BY 5 CMS AT THE FRONT LH FASTENER OPENING SIDE BY MAKING A U SHAPED BRKT |
|||
| 01 | 2435 67 | 01 |
CONTROL LEVER
UP TO MOD 1988 |
 | |||
| 02 | 2437 12 | 01 |
CABLE BRACKET
UP TO MOD 1988 |
| | |||
| 03 | 2444 89 | 01 |
CONTROL CABLE
UP TO MOD 1988 |
| | |||
| 2444 E1 | 01 | LG = 1368 MM | |
| | |||
| 04 | 2445 14 | 01 |
BALL-JOINT
UP TO MOD 1988 |
| | |||
| 05 | 2454 75 | 02 |
CONTRL BALL END
UP TO MOD 1988 |
| | |||
| 9A | 6913 33 | 01 | SOCKET SCREW 7X100-20 |
| | |||
| 9B | 6921 38 | 01 | CAPSCREW 5X80-12 |
| | |||
| 9C | 6932 28 | 01 | HEXAGONAL NUT 10X100-5 |
| | |||
| 9D | 6935 63 | 01 | SELF LOCKG NUT 8X100-7,5-13 |
| | |||
| 9E | 6947 78 | 01 | PLAIN WASHER 8X16-1,5 |
